Medical GMP Gel Seal EN 1822 H13 Hepa Filter System For Clean Room

제품 설명

Medical GMP Gel Seal EN 1822 H13 Hepa Filter System For Clean Room​

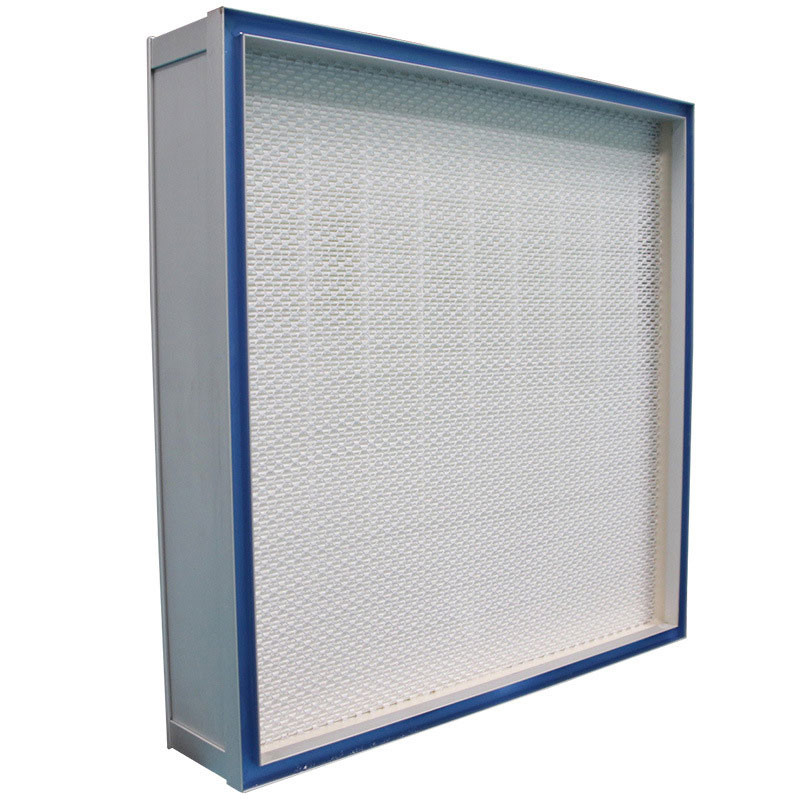

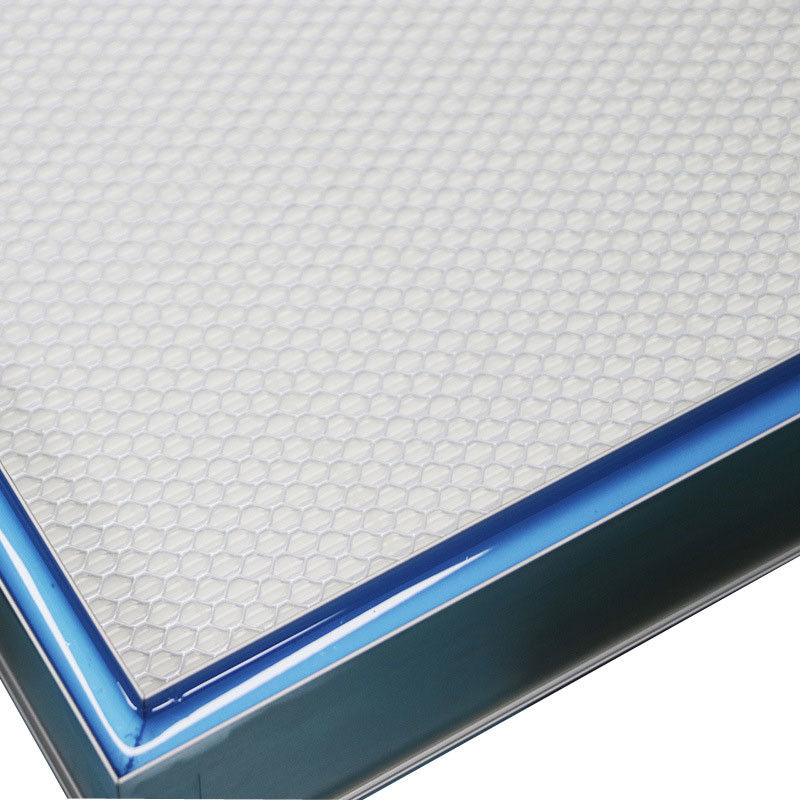

Medical GMP Cleanroom Seamless Top Gel Seal HEPA Filter With Aluminum Frame

Features:
-- low wind resistance,
-- high dust holding capacity,
-- high filtration precision,
-- processed into various sizes and shapes according to customer needs, and suitable for different models.

​

Application: Final or return filtration for clean rooms with turbulent flow.

Type: HEPA /ULPA filtering panel

Frame: Extruded and anodised aluminium.

Gasket: Half round continuous expanded polyurethane.

Media: Glass fibre paper.

Separator: Hot-melt beads.

Sealant: Polyurethane.

Grid: Mild steel painted grille upstream and downstream.

EN 1822 efficiency: H13.U15

MPPS efficiency: H13: ≥99.995%.; U15≥99.9995%.;

DOP efficiency: H13: ≥ 99.999%.; U15 ≥99.999%.;

Recommended final pressure drop: 600 Pa.

Maximum flow rate: See table, use nominal values otherwise a reduction in

efficiency may occur.

Temperature: 70°C maximum in continuous service.

Test: : 100% individually scanned to EN 1822.

Mounting system: Mechanical clamping structure, Terminal housings.

Optional: Alternative frame materials and size available on request.

Top Gel Frame thickness :80mm,95mm,104mm

Side Gel Sealed Frame: 69mm,75mm,90mm,93mm, 96mm,100mm

Usage: used for medicine, vegetables, raw, marked finish machining and precision instruments, electronic instrument workshop purification equipment required, two, functions: air shower, clean workshop and form a complete set of the clean room equipment, when workers in workshop, through this equipment, with strong and clean air, remove the clothes and carry on the surface of the dust.
