제품 상세 정보:
|
|
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | alphaclean |
| 인증: | CE |
| 모델 번호: | 4*2 피트 |
|
결제 및 배송 조건:
|
|
| 최소 주문 수량: | 1개 세트 |
| 가격: | negotiation |
| 포장 세부 사항: | Polywood 패킹 |
| 배달 시간: | 10일이요 |
| 지불 조건: | L/C (신용장), 전신환 |
| 공급 능력: | 2000sets |
|
상세 정보 |
|||
| 프레임: | 304 스테인레스 강 | 기류: | 1200 m3/h |
|---|---|---|---|
| 보증: | 1년이요 | 여과기 효율성: | H13~U17 |
| 기능: | 공기 정화 | 풍속: | 0.45 초당 미터 |
| 하이 라이트: | H13 FFU Fan Filter Unit,U17 FFU Fan Filter Unit,H13 Hepa Fan Filter Unit |
||
제품 설명

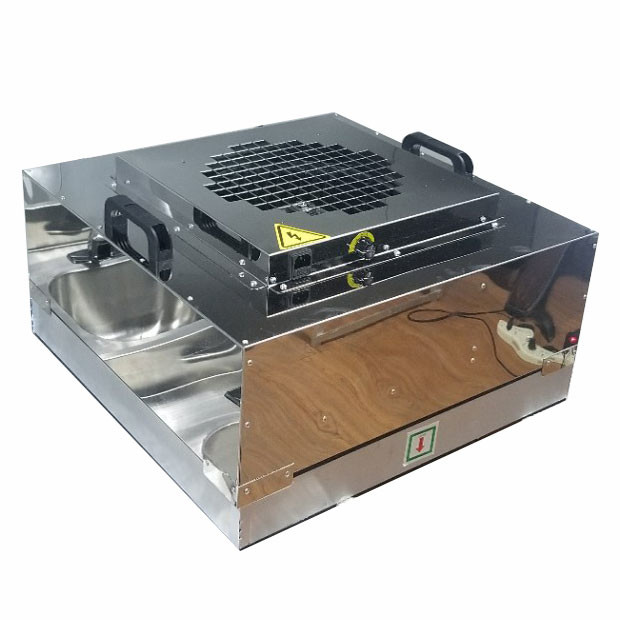

304 Stainless Steel Frame Hepa H13 FFU Fan Filter Unit Air Purification
304 Stainless Steel Casing Fan Powered Hepa Filter
FFU is self-clean air equipment. It can be installed to the ceiling or settled on the holder, which can reach Class 100. This FFU has HEPA filter and pre-filter. The fan absorbs the air from the top of it, and through the pre-filter and HEPA filter. The clean air after filtering will be send out by the whole air supply grille.
Material Data
Casing material: Galvalume sheet, stainless steel or aviation aluminum.
Fan: Domestic motor or imported motor.
Filter material: Ultra-fine fiberglass or PTFE.
Filter efficiency: H13~U17.
Sealing gasket: Sealing gasket in double air supply sides.
Temperature: Maximum 90°C in continuous service.
Suitable for Class 1-1000 clean room
Simple and light design,low height ,which can save space and is easily for installation and daily maintenance.
Unique inlet air channel ,Low vibration and noise
Uniform and steady air flow
High efficiency motor ,three speed control ,low current consumption and electricity saving
|
Model |
FFU-1175S |
FFU-57S |
FFU-87S |
FFU-1175S2 |
FFU-725S |
|
FFU-1175Z |
FFU-57Z |
FFU-87Z |
FFU-1175Z2 |
FFU-725Z |
|
|
Nominal Volume (m3/h) |
1080 |
530 |
1650 |
2200 |
1700 |
|
Noise Db(A) |
48-54 dbA |
48-54dbA |
50-56dbA |
52-58dbA |
50-56dbA |
|
Hepa filter efficiency |
≥99.99% ~ 99.9995%( @≥0.3μm) |
||||
|
The Out Power (W) |
150 |
150 |
190 |
255 |
190 |
|
Casing size L*W*H(mm) |
1175*575*277 |
575*575*262 |
875*1175*350 |
1175*1175*350 |
725*1475*345 |
|
Hepa Filter (mm) |
1170*575*70 |
575*575*70 |
875*1175*70 |
1170*1170*70 |
720*1470*70 |
|
Pre Filters (mm) |
as required |
||||
|
power |
AC 110 or 220 50 Hz or 60 Hz single phase |
||||
|
speed control |
three speed control (manual or computer group control) |
||||
|
operative mode |
the power indicator switch operation and failure indicator |
||||
|
overload protection |
Double overload protection with motor and controller switch |
||||
|
power access |
socket or terminal block |
||||
